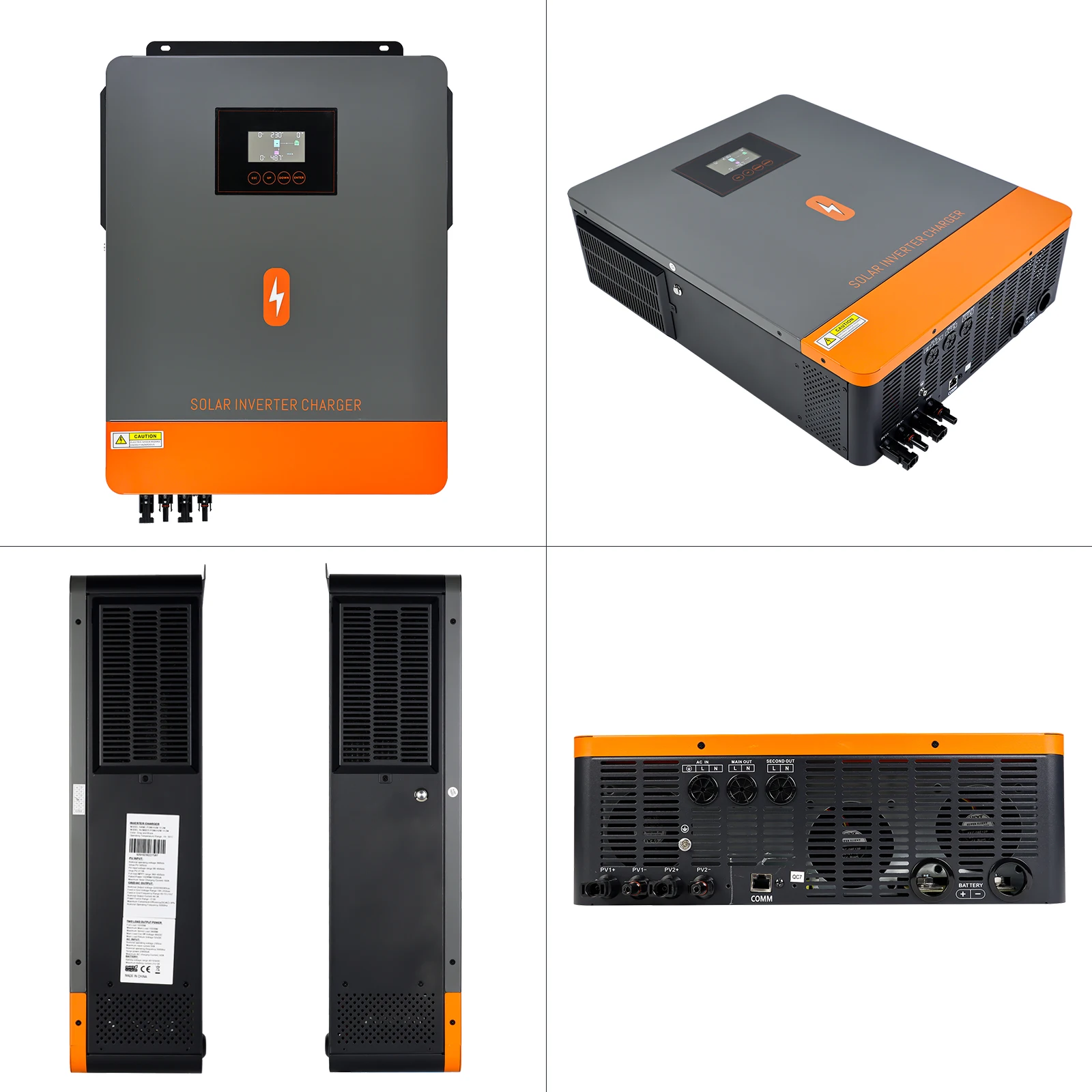

PowMr 4.2KW 6.2KW 8.2KW 10.2KW Hybrid Solar Inverter With MPPT 120/160A Charger Controller Dual AC Output Work On Grid/Off Grid
Introduction:
This is a multi-function grid tied inverter/charger, combining functions of inverter, solar charger and battery charger tooffer uninterruptible power support with portable size. lts comprehensive LCD display offers user-configurableand easy-accessible button operation such as battery charging current，AC/solar charger priority , and acceptable input voltage based on different applications.

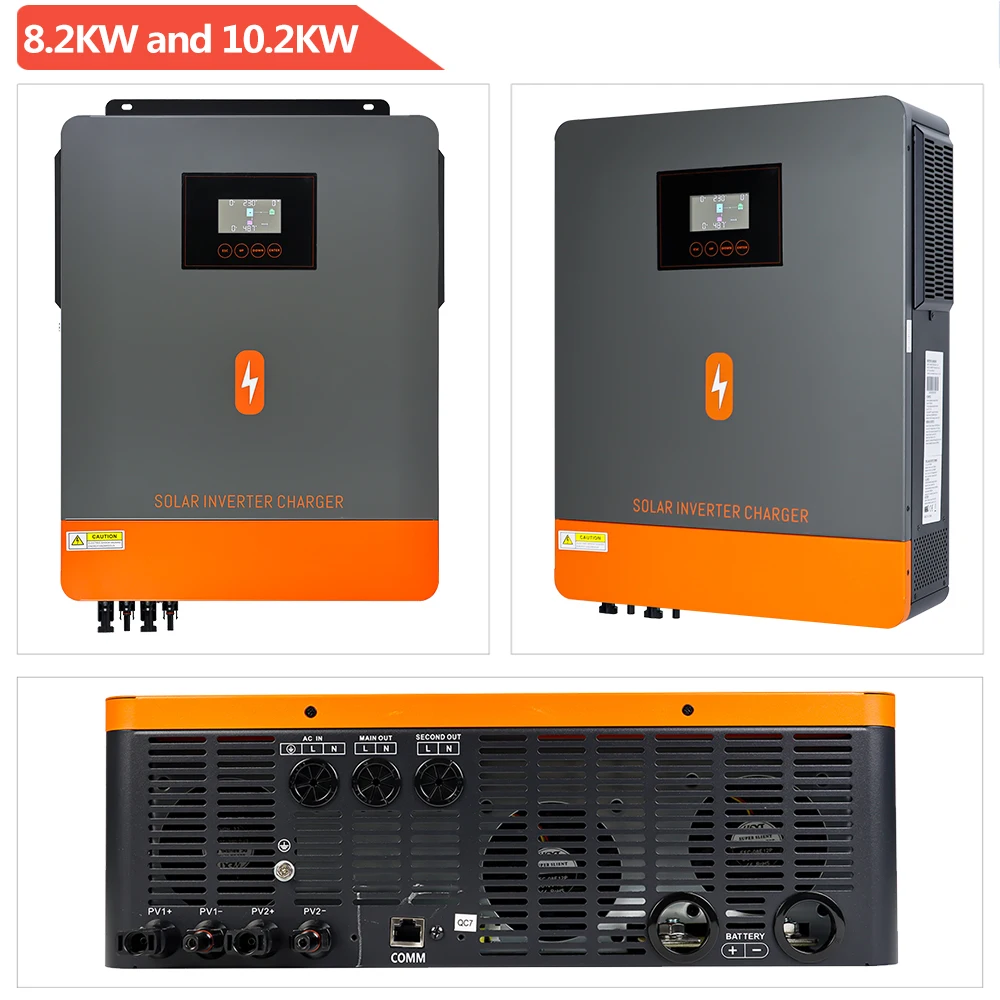

Only 10.2KW model With double PV input function.
Feature:
1.Pure sine wave solar inverter（on/off Grid）.
2.Inverter running without battery.
3.Output power factor 1.0
4.High PV input voltage range(90~500VDC).
5.WIFI&GPRS available for IOS and Android.
6.Built-in anti-dusk kit for harsh environment.
7.Built-in 160A MPPT solar charge controller.
8.Smart battery charge design to optimize battery life.
9.One-click restoration to factory Settings.
10.Dual output.
11.Built-in Lithium battery automatic activation.
12.Touch buttom.
Specification:
|
Table 1 Line Mode Specifications |
|||
|
INVERTER MODEL |
4.2KW 24V |
6.2KW 48V |
10.2KW 48V |
|
Input Voltage Waveform |
Pure Sine Wave(Utility or Generator) |
||
|
Nominal Input Voltage |
230Vac |
||
|
Max AC Input Voltage |
300Vac |
||
|
Efficiency(Line Mode) |
>95%( Rated R load,battery full charged) |
||
|
Transfer Time |
10ms typical(UPS);20ms typical(Appliances) |
||
|
Table 2 Inverter Mode Specifications |
|||
|
INVERTER MODEL |
4.2KW 24V |
6.2KW 48V |
10.2KW 48V |
|
Rated Output Power |
4.2KW |
6.2KW |
10.2KW |
|
Output Voltage Waveform |
Pure Sine Wave |
||
|
Output Voltage Regulation |
230Vac±5% |
||
|
Output Frequency |
50HZ |
||
|
Peak Efficiency |
0.93 |
||
|
Overload Protection |
3s@≥150% load;5s@101%~150% load |
||
|
Surge Capacity |
2* rated power for 5 seconds |
||
|
Nominal DC Input Voltage |
24Vdc |
48Vdc |
48Vdc |
|
Cold Start Voltage |
23.0Vdc |
46.0Vdc |
46.0Vdc |
|
No Load Power Consumption |
30W |
50W |
75W |
|
Table 3 Charge Mode Specifications |
|||
|
INVERTER MODEL |
4.2KW 24V |
6.2KW 48V |
10.2KW 48V |
|
Charging Algorithm |
3-Step |
||
|
AC Charging Current (Max) |
100A |
100A |
140A |
|
Max. PV Array Power |
6200W |
6500W |
10200W |
|
Nominal PV Voltage |
240Vdc |
360Vdc |
360Vdc |
|
PV Array MPPT Voltage Range |
60Vdc~450Vdc |
90Vdc~500Vdc |
90Vdc~450Vdc |
|
Max. PV Array Open Circuit Voltage |
500Vdc |
||
|
Max Charging Current(AC charger plus solar charger) |
120A |
120A |
160A |
|
Tabel 4 Grid-Tie Operation |
|||
|
INVERTER MODEL |
4.2KW 24V |
6.2KW 48V |
10.2KW 48V |
|
Nominal Output Voltage |
220/230/240VAC |
||
|
Feed-in Grid Voltage Range |
195-253VAC |
||
|
Feed-in Grid Frequency Range |
49-51±1Hz/59-61±1Hz |
||
|
Nominal Output Current |
18.2A |
26.9A |
44.3A |
|
Maximum Conversion Efficiency(DC/AC) |
97% |
||
|
Table 5 Two Load Output Power |
|||
|
INVERTER MODEL |
4.2KW 24V |
6.2KW 48V |
10.2KW 48V |
|
Full Load |
4200W |
6200W |
10200W |
|
Maximum Main Load |
4200W |
6200W |
10200W |
|
Maximum Second Load(battery model) |
1400W |
2066W |
3400W |
|
Main Load Cut Off Voltage |
26VDC |
52VDC |
44VDC |
|
Main Load Return Voltage |
27VDC |
54VDC |
54VDC |
