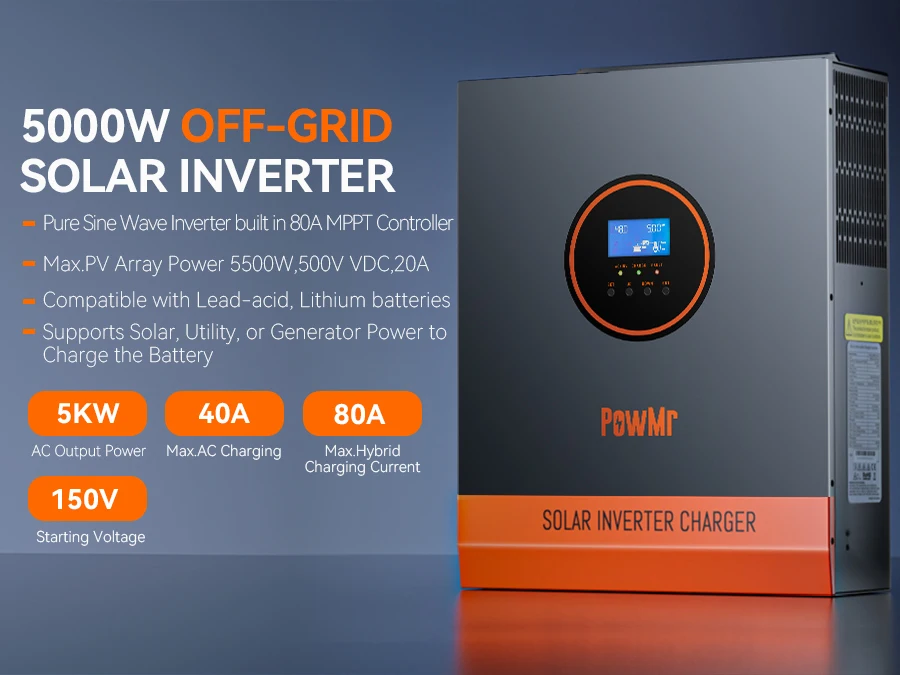

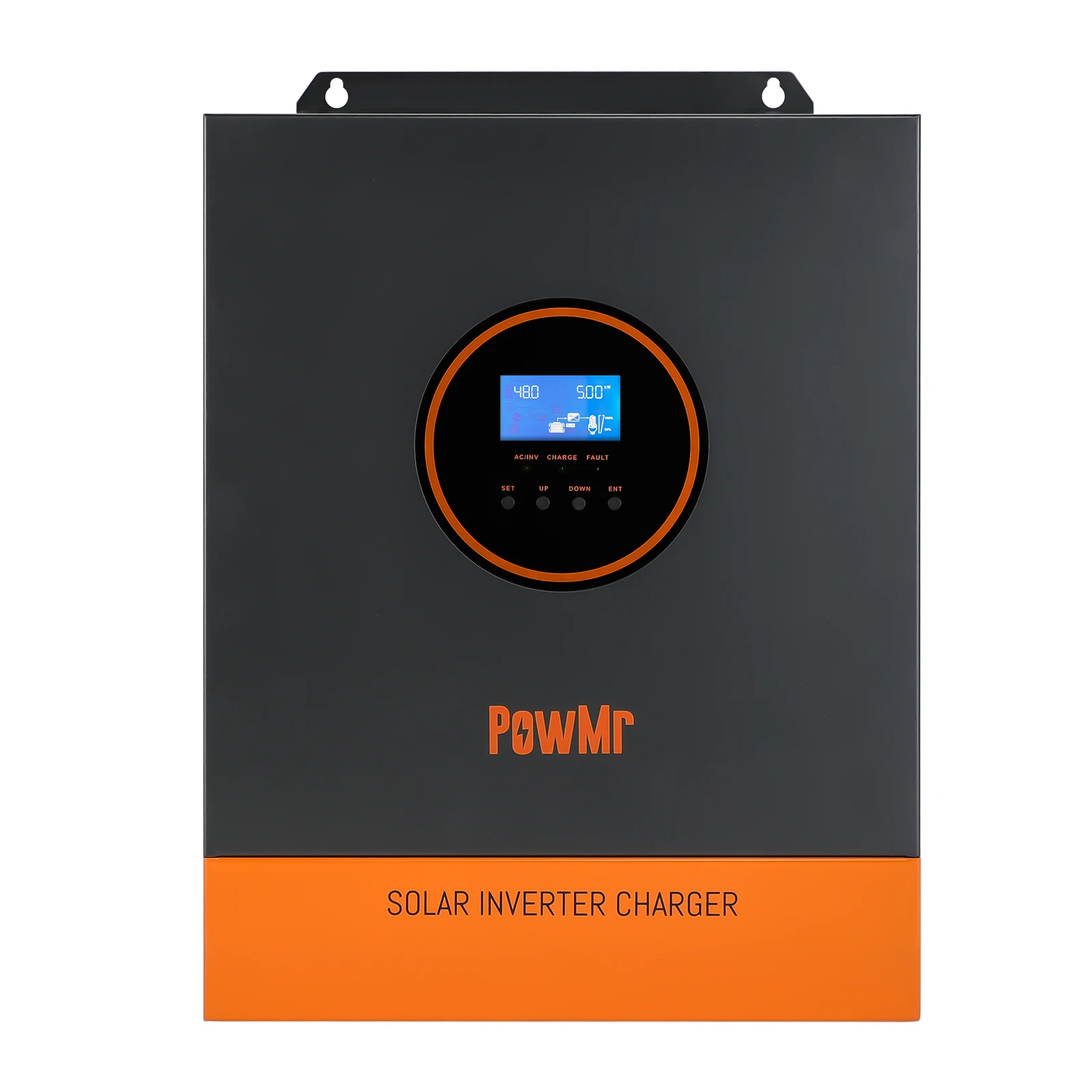

PowMr 5KW 48V MPPT Solar Inverter Pure Sine Wave 110/120VAC Output With 80A Controller Support Lithium-ion and Lead-acid Battery
Introduction:
POW-LVM series is a new type of mixed solar energy storage inverting & control all-in-one inverter integrating solar energy storage & municipal power charge storage and AC sine wave output.
It can output 110VAC/120VAC voltage, suitable for countries or regions that require 110VAC voltage such as the United States, Brazil and Japan.
Features:
* Pure Sine Wave inverter, 120Vac AC output.
* Higher output power up to 3000W / 5000W, supports single-phase devices.
* Fast switching time of 10ms.
* Compatible with 24V/48V lithium-ion and lead-acid battery, support user-define.
* Max. PV charging current up to 80A.
* Max. AC charging current up to 40A.
* Max. hybrid charging current up to 80A.
* 90~140Vac AC input voltage range.
* 120~450Vdc wide voltage range for PV access.
* 1 MPP Tracker, with 99.9% efficiency.

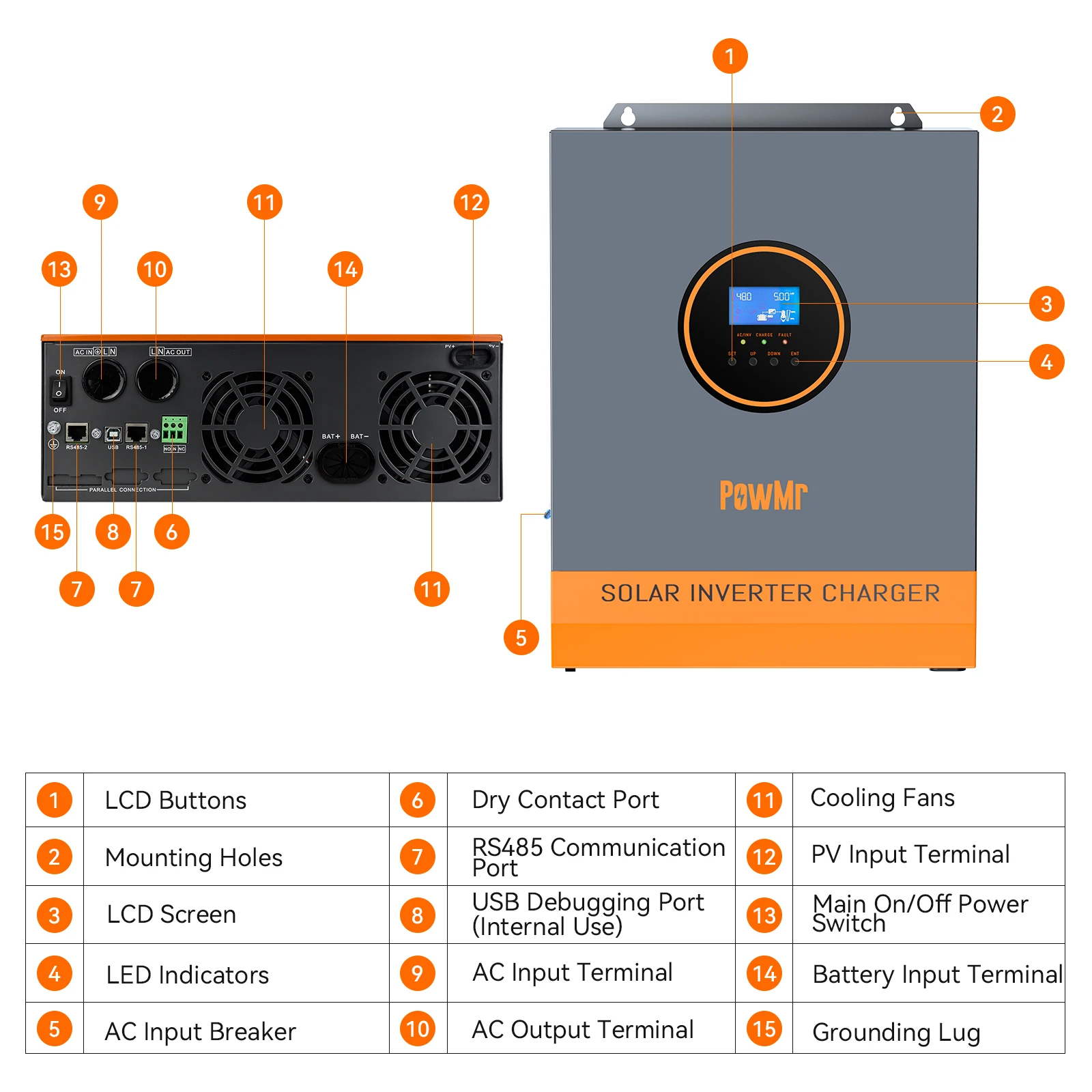

* Configure multiple communication interfaces (USB/CAN/RS485(WiFi/GPRS)/Dry node control).
* Durable finish with high anti-corrosion.

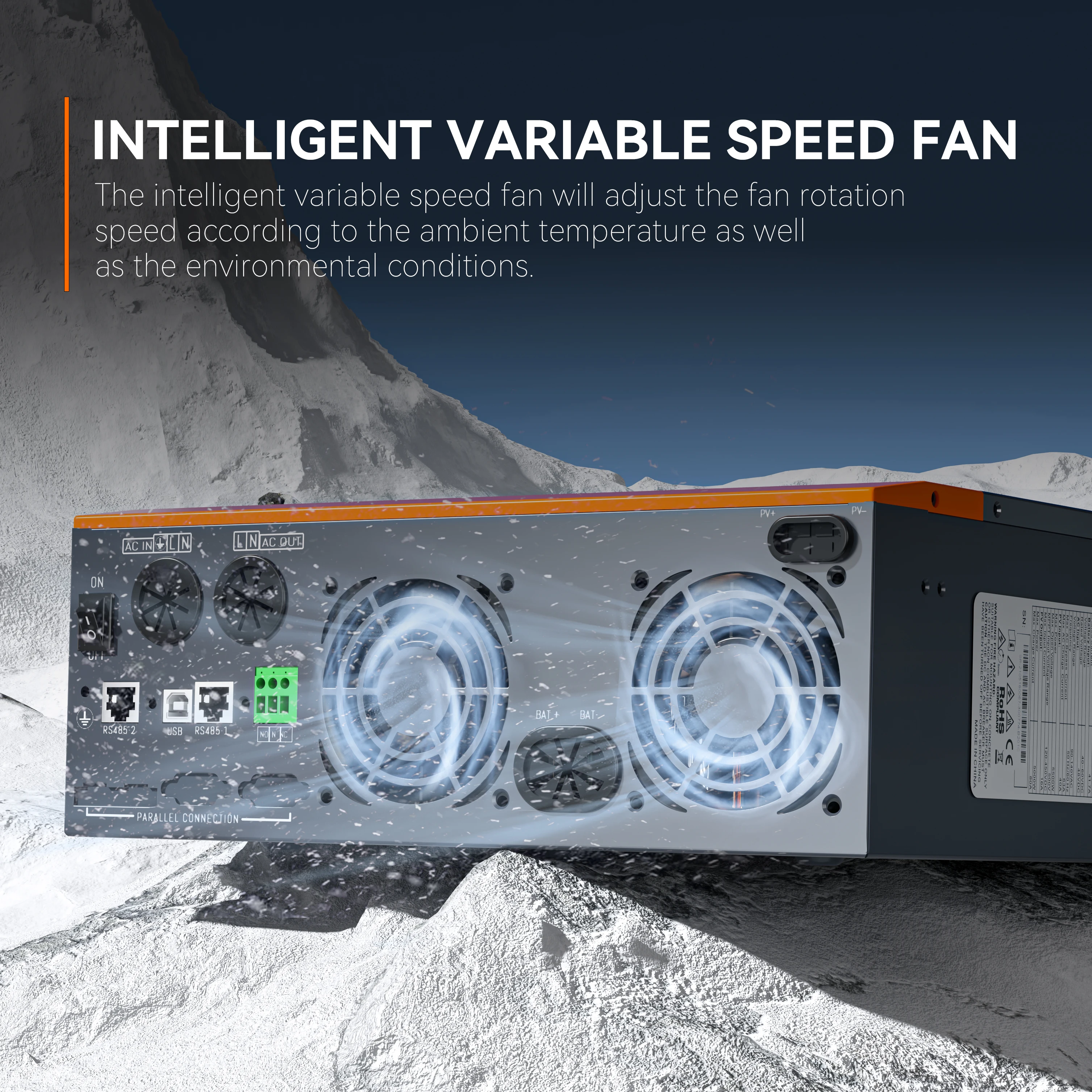

* Effective forced air cooling to ensure that the equipment runs stably.
Specification:
|
Model
|
POW-LVM3K-24V
|
POW-LVM5K-48V
|
|
AC Mode
|
||
|
Rated input voltage
|
110/120Vac
|
|
|
Input voltage range
|
(90Vac-140Vac)
|
|
|
Frequency
|
50Hz/ 60Hz (auto-sensing)
|
50Hz/ 60Hz (auto-sensing) |
|
Overload/short-circuit protection
|
Circuit breaker
|
|
|
Efficiency
|
>95%
|
|
|
Maximum bypass overload current
|
40A
|
63A
|
|
Inverting Mode
|
||
|
Output voltage waveform
|
Pure sine wave
|
|
|
Rated output power (VA)
|
3000
|
5000
|
|
Rated output power (W)
|
3000 |
5000 |
|
Rated output voltage (Vac)
|
120Vac
|
120Vac
|
|
Maximum Efficiency
|
>92%
|
>90%
|
|
Peak power
|
6000VA
|
10000VA
|
|
Loaded motor capability
|
2HP
|
4HP
|
|
Rated battery input voltage
|
24V (Minimum starting voltage 22V)
|
48V (minimum start voltage 44V)
|
|
Power saving mode
|
Load ≤50W
|
|
|
AC Charging
|
||
|
Battery type
|
Lead acid or lithium battery
|
|
|
Maximum charge current
(can be set)
|
0-40A
|
|
|
Charge voltage range
|
20–33Vdc
|
40–60Vdc
|
|
Breaker specification
|
40A
|
63A
|
|
Solar Charging
|
||
|
Maximum PV open-circuit voltage
|
450Vdc
|
500Vdc |
|
PV operating voltage range
|
120~450Vdc
|
120-500Vdc
|
|
Battery voltage range
|
20~33Vdc
|
40-60Vdc
|
|
Maximum input power
|
4000W
|
5500W
|
|
Charge current range of solar energy
(settable)
|
0-80A
|
|
|
Authentication Specification
|
||
|
EMC authentication grade
|
EN61000
|
|
|
Noise
|
≤60dB
|
|
|
Communication interface
|
USB/RS485 (WiFi/GPRS)/dry node control
|
|
|
Dimension (L*W*D)
|
378mm*280mm*103mm
|
426mm*322mm*126mm
|
|
Weight (kg)
|
8
|
11.5
|
Product Description:
Product Overview:
